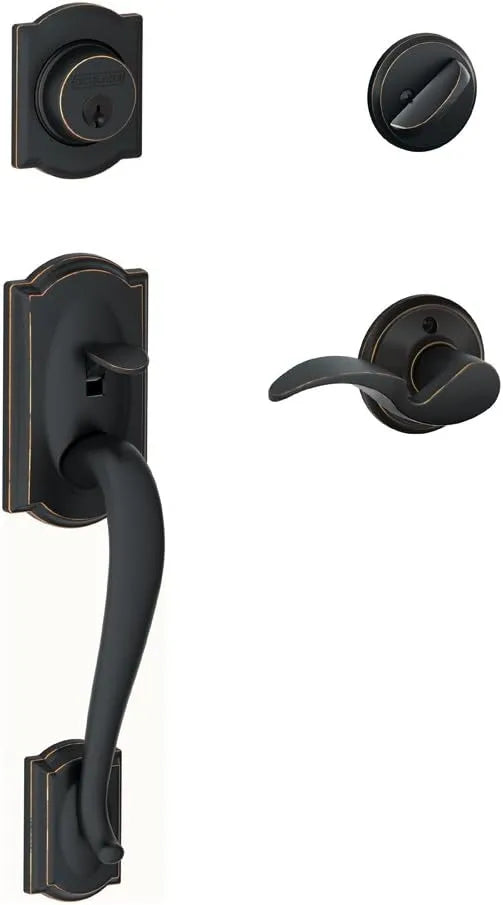

Schlage door handle set, single cylinder, series: camelot F60, avanti, suitable for use with: 1-5/8 - 1-3/4 in door thickness, keyed key, 2 keys, 2-3/8 - 2-3/4 in backset, 1-1/8 x 2-3/4 in, 2-1/8 in cross bore, 5 pins, grade: 1, aged Bronze, ansi specified, bhma certified, 7/8 - 1 in edge bore, 1 x 2-1/4 in latch face, 1 in x 2-1/4 in faceplate. For residential single and multi-family entrance doors. Deadbolt thrown or retracted by key from outside or by inside turn unit. Latch retracted by thumbpiece from inside or outside grip. Solid forged brass outside trim, wrought brass trim rings with concealed security inserts. Wrought brass inside trim. Wrought brass cylinder trim rings reinforced by tapered die cast security insert for resistance to wrenching or prying. Ultimate lifetime Anti-Tarnish finish on all exterior parts. Door prep: 1-1/2" or 2-1/8" deadbolt and 2-1/8" latch bolt cross bore; 7/8" or 1" edge bore; 1" x 2-1/4" latch faces; 4" ctc. Door thickness: 1-5/8" to 1-3/4"; packed with extra mounting screws to accommodate 2" doors. Cylinder: 5-pin with nickel silver pins and keys (2). faceplates: 1" x 2-1/4". strikes: deadbolt - 1-1/8" x 2-3/4", square corner, no lip, dust box and door frame reinforce; latch bolt - 1-5/8" x 2-1/4" full lip. Bolt: maximum security B300 single cylinder deadbolt with 7/8" housing diameter, 1" throw. ANSI/bhma: grade 1 security features. Triple option universal: both handle set and deadbolt fit all doors, 2-3/8" or 2-3/4" backset; square corner, round corner, or drive-in Preps.
About this item
